INTIG 202 & 250 Pulse Digital Inverter Based MMA/TIG/PULSE Tig Welding machine General Information: Digital Inverter Based MMA / TIG / Pulse TIG Welding Machine INTIG PULSE Series machines are microprocessor controlled fully Digital lGBT Inverter based arc welding power source with advanced inverter technology. They are widely used for DC MMA, DC TIG & DC PULSE TIG welding In mild steel, alloy steel, stainless steel, copper & Titanium. Features: Advanced inverter technology, hence more reliability. Micro controller based technology for precise setting of welding parameters Under voltage, Over voltage, Phase absence and over heat protection. Digital preset of all welding parameters. High Efficiency, Better power factor. Built In High Frequency. 2/4 Step function. Built in gas control solenoid valve. Optional Accessories: Water circulation System, TIG Torch, Gas Regulator and remote controller. Basic Outfits: Power Source with wheels & Remote Socket for Torch Trigger Switch. Model : INTIG-202 Pulse : INTIG-250 Pulse Input Power (KVA): 7.5 : 9.8 Welding Current Range (A): 5-200 : 5-250 Peak/Base Current (A): 5-200 : 5-250 Start/Stop Current (A): 5-200 : 5-250 Weight (Kg): 19 : 23 Duty Cycle: 60% : 60% Dimensions (LxWxH mm): 530 x 240 x 400 : 530 x 270 x 420 Input Supply: 230V Single Phase 50Hz : 380-440 V 3-Phase 50 Hz Open Circuit Voltage (V): 75 : 75 Insulation Grade: H : H Up/Down Slope Time (Sec): 0-10 : 0-10 Pre Gas Time (Sec): 0-5 : 0-5 Post Gas Time (Sec): 0-60 : 0-60 Pulse Frequency (Hz): 0.2-99.9 : 0.2-99.9 Pulse Duty Cycle (%): 5-100 : 5-100 Efficiency at full load (%): 89 : 89 Power Factor: 0.95 : 0.95

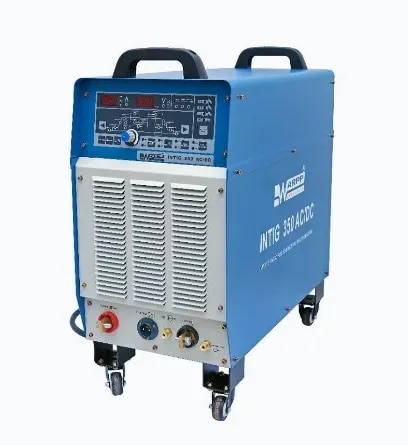

INTIG 350 AC/DC OUTFIT AND INTIG 501 AC/DC OUTFIT General Information: DIGITAL INVERTER BASED AC/DC SQUARE WAVE TIG WELDING MACHINE INTIG-AC/DC Series machines are microprocesser controlled fully digital IGBT inverter based arc welding power source with soft switching technology. They are widely used for DC TIG, DC PULSE TIG / AC Square wave TIG and AC Square Wave Pulse TIG welding in various metals including Al. and Mg alloy. Features: Advanced Soft Switching technology, hence more reliability. Micro controller based technology for precise setting of welding parameters. Under voltage, Over Voltage, Phase absence and over heat protection. Digital preset of all welding parameters. Memory channels to store parameters. High efficiency, Better power factor. Light Weight but high duty cycle. Built in High Frequency.. Gas Check Facility. 2/ 4Step function. 14 ltrs.Water tank made from heat resistant PVC material. Specially designed Vortex Pump with brass body. Three Stage copper tube cooling radiator combined with separate. High Speed fan ensures efficient heat transfer to keep the torches cool. Water level indication. High Speed Cooling fan for Water Circulation Unit. Basic Outfits: Power Source with Wheels Water Cooling System Tig torches 4/8 mtrs. Regulator + Flowmeter Flowswitch Earthing Cable with clamp Trolley Starter Kit Remote socket for Torch Trigger Switch. Optional Accessories: Wired Remote Controller Model: INTIG-350 AC/DC OUTFIT : INTIG-501 AC/DC OUTFIT Peak / Base Current (A): DC 10-350 / AC 20-350 : DC 10-355 / AC 20-500 Input Power (KVA): 11 : 19.5 Open Circuit Voltage (V): 70-80 : 70-80 Max Welding Current (MMA/TIG): MMA 255 / TIG 350 : MMA 400 / TIG 500 Dimensions (L × W × H) mm: 1010 x 400 x 1340 : 1010 x 400 x 1380 Weight (Kg): 110 : 122 Input Supply: 380-440 V 3-Phase 50 Hz (Power Source), 230 V Single Phase 50 Hz (Water Circulation Unit) : 380-440 V 3-Phase 50 Hz (Power Source), 230 V Single Phase 50 Hz (Water Circulation Unit) Duty Cycle (%): 60% (40°C & 10 Min Standard) : 60% (40°C & 10 Min Standard) Efficiency (%): 85 : 85 Gas Pre Flow (Sec): 0-5 : 0-5 Post Gas Flow (Sec): 0-20 : 0-20 Up Slope Time (Sec): 0.1-10 : 0.1-10 Down Slope Time (Sec): 0.1-15 : 0.1-15 Pulse Frequency (Hz): 0.2-99.9 : 0.2-99.9 Pulse Duty Cycle (%): 10-90 : 10-90 AC Welding Frequency (Hz): 20-200 : 20-200 Power Factor: 0.9 : 0.9

INTIG 400 ID Inverter Based MMA/TIG Welding Machine General Information INTIG-ID Series machines are microprocessor controlled fully Digital lGBT Inverter based arc welding power source with soft switching technology. They are widely used for DC MMA, DC TIG welding In mild steel, alloy steel, stainless steel, copper & Titanium. Features: Advanced technology,hence more reliability Micro controller based technology for precise setting of welding parameters Under voltage, Over voltage, Phase absence and over heat protection. Digital preset of all welding parameters. High Efficiency, Better power factor. Light Weight but high duty cycle. Built in High Frequency. 2/4 Step function. Optional Accessories: Water circulation System, TIG Torch, Gas Requlator and remotecontrol. Basic Outfits: Power Source with Wheels & Remote Socket for Torch Trigger Switch Model: INTIG 400 ID Input Power (KVA): 18.4 Welding Current Range (A): 5–400 Start/Stop Current (A): 5–400 Duty Cycle: 100% Weight (KG): 43 Dimensions (LxWxH) mm: 600 x 320 x 590 Input Supply: 380~440V 3-Phase 50Hz Supply Open Circuit Voltage: 75 Volts Insulation Grade: H Efficiency at full load (%) : 89 Up/Down Slope Time (Sec.): 0 ~ 10 Power Factor: 0.9 Pre Gas Time (Sec.): 0 ~ 5 Post Gas Time (Sec.): 0 ~ 60

INARC I Series machines are IGBT inverter based arc welding power source with soft switching technology.They are widely used for Carbon arc gouging & manual metal arc welding with acid and basic electrodes. FEATURES: Advance Soft Switching inverter technology and high efficiency Easy arc striking & stable arc Digital display of current with precise preset function Digital Display of Voltage High power factor High switching frequency, hence low volume & weight Adjustable arc force Can be used with extended welding cable. OPTIONAL ACCESSORIES: Gouging Torch Wired & Wireless Remote Controller Wired Remote Controller with digital display of current BASIC OUTFITS: Power Source with wheels Model - INARC-1000 I Input Supply - 380~440 V 3-Phase 50 Hz Supply Efficiency at full load (%) - 86 Input Capacity (KVA) - 54 Open Circuit Voltage - 75-85 Volts Welding Current Range (A) - 50-1000 Rated Duty Cycle - 100% Ambient Temperature - 40°C Dimensions (LxWxH) mm - 820x420x940 Weight (KG) - 95 Power Factor - 0.95 Type of cooling - Forced Air cooled Input Power (KVA) - 54

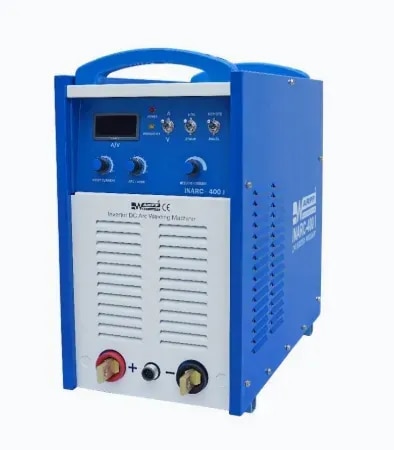

INARC - 400 I CEL Series Machines are IGBT based arc welding power source with soft switching technology. They are widely used for manual metal arc welding with acid, basic & cellulosic electrodes. FEATURES: Advanced Soft Switching Inverter Technology and high efficiency. Easy arc striking & stable arc Digital display of current with precise pre set function Digital display of Voltage High power factor High Switching Frequency, hence low volume and weight Adjustable arc force Can be used with extended welding cable Wireless remote controller. Optional Accessories: Wired & Wireless Remote Controller Wired Remote Controller with digital display of current Basic Outfits: Power Source with wheels Specification: Model - INARC-400 I CEL Input Power (KVA) - 18.4 Current Range (A) - 20 - 400 Duty Cycle (%) - 100% Weight (Kg) - 38 Input Supply - 380 - 440 V, 3 Phase, 50 Hz Open Circuit Voltage (V) - 75 Efficiency at Full Load (%) - 89 Power Factor - 0.95 Ambient Temperature - 40°C Dimensions (L × W × H) (mm) - 600 x 300 x 560

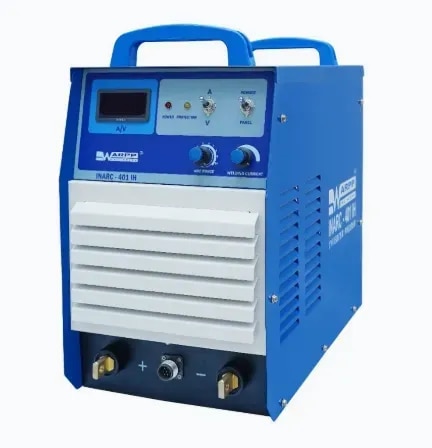

INARC 401 IH is IGBT arc welding power source.This employs IGBT module in full bridge topology.These machines are widely used for manual metal arc welding with acid, basic electrodes. FEATURES: IGBT Module with full bridge topology Easy arc striking & stable arc Digital display of current & voltage with a selector switch Digital Display of Voltage High power factor High switching frequency, hence low volume & weight Adjustable arc force Can be used with extended welding cable Standard Remote facility is available OPERATIONAL ACCESSORIES: Wire remote controller BASIC OUTFIT: Power source with wheels Model INARC-401 IH Input Supply: 380~440 V 3-Phase 50Hz Supply Efficiency at full load (%): 89 Power Factor: 0.95 Input Capacity (KVA): 18.4 Open Circuit Voltage: 75-85 Volts Welding Current Range (A): 20-400 Rated Duty Cycle: 60% Dimensions (LxWxH) mm: 520x290x570 Weight (KG): 26 Ambient Temperature: 40°C

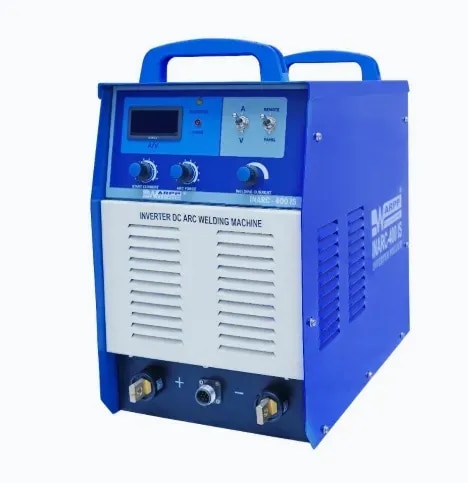

INARC 400 IS is IGBT based arc welding power source. This employs IGBT module in full bridge topology. These machines are widely used for manual metal arc welding with acid , basic electrodes. FEATURES: IGBT Module with full bridge topology Easy arc striking & stable arc Digital Display of current with precise preset function Precise preset of current High Power factor High Switching frequency, hence low volume and weight Adjustable arc Force Can be used with extended welding cable Standard Remote facility is available. Optional Accessories: Wired Remote Controller Wired Remote Controller with digital display of current. Basic Outfits: Power Source with wheels. Model: INARC-400 IS Input Power (KVA): 18.4 Current Range (A): 20-400 Duty Cycle: 60% Weight (KG): 28 Input Supply: 380-440 V 3-Phase 50Hz Supply Efficiency at full load (%): 89 Open Circuit Voltage: 75-85 Volts Power Factor 0.95 Ambient Temperature 40°C Dimensions (LxWxH) mm 520x290x570

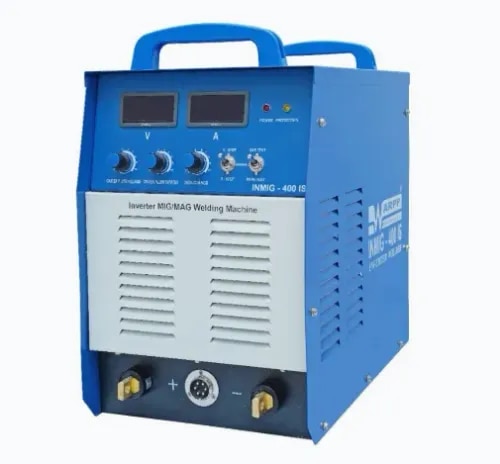

INMIG-IS Series welders are Semi-Automatic Gas Shielded Metal are Welding machines with advanced wave control technology. They are widely used for GMAW/FCAW applications. Features: Full bridge IGBT(Module)Inverter technology. Low spatter and adjustable inductance. Continuous adjustment of welding voltage and current. Slow start facilitates easy arc striking. Reduced melting ball at the end of welding. High operating frequency hence small size and weight. High Power Factor & Efficiency. Preset Digital Display of Welding voltage and current.

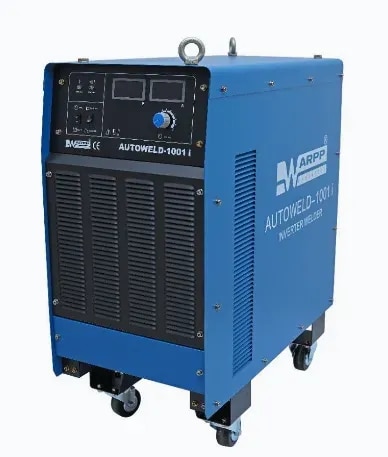

Inverter Based Saw Machine AUTOWELD-i Series machines are IGBT inverter based welding power sources with suitable tractor for submerged Arc Welding. The power source can be used for MMA welding and carbon arc gouging also. Features: Advanced Soft Switching inverter technology. Can be used with SAW, MMA and Carbon Arc Gouging. 100% Duty Cycle. High Power Factor and Higher efficiency Digital Controller for precise control of voltage, current and trolley speed Pre-setting and digital display of voltage, Current & trolley speed Memory channel to store/recall the welding parameters Wire diameter selection facility for precise arc characteristics Easy angle adjustment of wire feeder head. Model : Input Power(kva) : Current range : weight Autoweld 1001I : 53 : 100-1000 : 97 Autoweld 1251I :65 : 100-1250 : 97

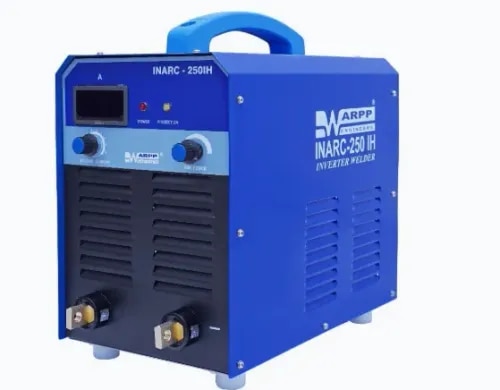

INARC 250 IH is IGBT based arc welding power source. This employs IGBT module in full bridge topology. These machines are widely used for manual metal arc welding with acid and basic electrodes. Features: IGBT Module with full bridge topology Easy arc striking and stable arc Digital display of current Precise Preset of current High power factor High switching frequency, hence low volume & weight Adjustable arc force. Basic Outfits: Power Source with Input cable Model : Value Input Supply: 380–440 V, 3-Phase, 50 Hz Efficiency at Full Load (%): 89 Power Factor: 0.95 Open Circuit Voltage (V): 75–85 Ambient Temperature: 40°C Dimensions (L × W × H mm): 530 × 270 × 420

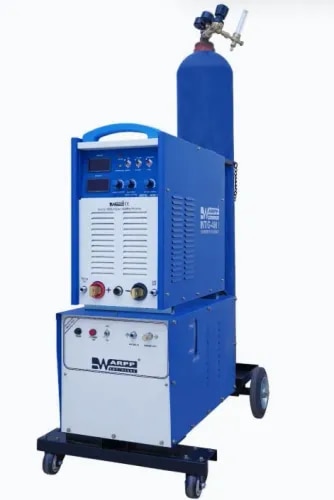

INVERTER BASED MMA/TIG OUTFIT INTIG I series machines are IGBT inverter based arc welding power source with soft switching technology. They are widely used for manual metal arc welding with acid and basic electrodes for TIG welding of various metals except Al & Mg Alloy. FEATURES: Advanced Soft Switching inverter technology & high frequency Digital display of current with precise preset function. High Power factor. High Switching frequency, hence low volume and weight. Adjustable arc force in MMA. Built in High Frequency. 2/4 Track function in TIG. Adjustable Down Slope function in TIG. Can be used with extended welding cable in MMA. Basic Outfits: Power Source Water cooling system TIG torch 4 mtr or 8 mtr (WP-/ WC-400) Argon Regulator with Flow meter Trolley Starter kit 2 mtr earthing cable with clamp Model : INTIG-400 i : INTIG-630 i : WCS-400 Input Power (KVA): 18.4 : 35 : - Current Range (A): 20 - 400 : 30 - 630 : - Duty Cycle: : 100% : 100% Weight (Kg) 43 : 55 : 30 Input Supply: 380 - 440 V, 3-Phase, 50 Hz : 380 - 440 V, 3-Phase, 50 Hz : 230 V Single Phase 50 Hz Open Circuit Voltage (V) :75 - 80 : 75 - 80 : - Efficiency (%): 89 : 89 : - Power Factor: 0.95 : 0.95: - Ambient Temperature: 40°C : 40°C : - Additional Specifications: Wire Feed Speed: 1.3~21 m/min; Torch Connection: EURO Type; Motor: Print Motor; Wire Feeder: Two Roll Drive : Wire Feed Speed: 1.3~21 m/min; Torch Connection: EURO Type; Motor: Print Motor; Wire Feeder: Two Roll Drive : Water Tank: PVC 24 L; Pump: Brass Centrifugal 0.125 HP; Cooling Fan: High Speed; Radiator: 255 x 230 mm, 3-row copper pipes.

INARC-i Series Machines are IGBT inverter based arc welding power source with soft switching technology. They are widely used for manual metal arc welding with acid and basic electrodes. Features: Advance Soft Switching inverter technology and high efficiency. Easy arc striking and stable arc Digital display of current with precise preset function. Digital display of voltage with selector switch High Power factor High Switching frequency, hence low volume and weight. Adjustable arc force. Can be used with extended welding cable. Wireless remote control option. Carbon arc gouging possible in models beyond 600 Amps.
