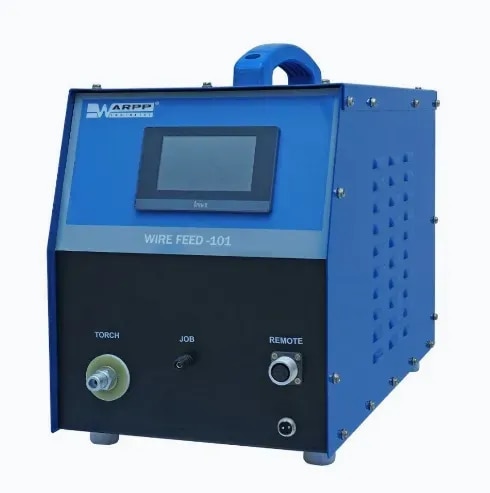

General Information: Digital pulse cold wire feeder These wire feeders are used for automatic feeding of filler wire in GTAW application. The equipment has dedicated microcontroller with program to adjust different parameters required for the operation. Features: Microcontroller based with embedded program. LCD display for all settable parameters. Steeper motor for precise feeding of the wire 2/4 Step Function Pulse Function with adjustable ON/OFF Time Adjustable ON delay for wire feeding Isolated contact for tuning on the TIG machine so that one point control can be achieved Can be used with foot switch Auto retract of wire at the end of welding. Optional Accessories: TIG Torch Basic Outfits: Pencil torch 3 mtr. Length with micro switch OR Feed mechanism suitable for 4 mtr. Length TIG torch with Foot Switch(TIG torch not included) Model : Details Machine Motor : Autofeed CWF02 Input Supply : Single Phase 230 V 50 Hz Wire Feeder Motor : Stepper Motor Wire Feed Rate : 0.1 ~ 10 M/Min Pulse ON/OFF Time : 0.1 ~ 5 Sec On Delay Time : 0 ~ 5 Sec Wire Retract : Provided Weight : 23.5 Kg
