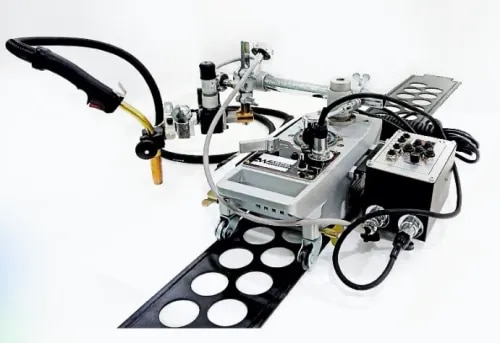

WTRY-EASY_OSC General Information Multi purpose Welding carriage WTRY-EASY-OSC WTRY-EASY-OSC is a multipurpose carriage with weaving controls. The trolly moves on a track and hence can be used for 1G application only. It is suitable for both butt as well as Fillet welding application Features: Aluminum die cast body makes it light weight still sturdy Can be used for both BUTT & FILLET Welding application Wider Wheel Base and hence stable Longer cross beam and hence wider reach Easy adaptability to different kind of MIG torches High Speed mode given for use in plasma cutting application Multipurpose as the same trolley can be used for welding & cutting 360° initial positioning of the torch. Customer Scope: Carriage with 1.8 meters track Input cable Model : WTRY-EASY-OSC Input Supply : Single phase 230 volts 50 Hz Driving Mode : 2 wheel drive Tracking Mode : Track Type Track Length : 1.8 meters Traveling Speed : 80 ~ 800 (mm/min) Up/Down Torch Adjustment : 80 mm Left/Right Torch adjustment : 120 mm Weaving speed : 0 ~ 100 mm/Sec Left/Right Dwell time : 0 ~ 2.5 Sec Weaving Angle : 0 ~ 15 Degree Dimensions (L × W × H) : 314 X 195 X 242 mm Weight : 12.5 Kg
