INVERTER BASED AIR PLASMA CUTTING MACHINE AIRCUT - 200 - 300IW AIRCUT- 200 IW, AIRCUT- 300 IW machine are inverter based air plasma cutting machine. They are widely used for cutting ferrous as well as non ferrous metals using inexpensive air as the cutting media. FEATURES: Advanced ‘Soft switching’ technology, hence more reliability High Frequency Arc Striking High power factor & efficiency Good cutting quality Continuous adjustment of current possible Air Failure protection switch with indication Water failure Protection with indication Protection against thermal over load Two levels of air flow system to ensure smooth pilot arc Up sloping of current to increase the consumable life Higher on-load voltage and hence higher speed of cutting Bigger output inductor for extra smooth DC output which results in better cut finish Customer Scope: Power source along with water cooling system 5 mtr hand held water cooling torch,Air filter,Earthing Cable, 3 sets of Electrode,Nozzle. Model : AIRCUT-200 IW : AIRCUT-300 IW Clean Cut Thickness: 70 mm (MS, SS) : 100 mm (MS, SS) Rough Cut Thickness: 75 mm (MS, SS) : 105 mm (MS, SS) Recommended on Trolley: 55 mm : 80 mm Input Power (KVA): 39 : 70 Current Range (A): 60 – 200 : 80 – 300 No Load Voltage (DC): 380 VDC : 380 VDC Input Supply: 380–440 V, 3-phase, 50 Hz : 380–440 V, 3-phase, 50 Hz Efficiency: 85% : 85% Power Factor: 0.85 : 0.85 Duty Cycle: 100% : 100% Air Pressure (kg/cm²): 5–6 : 5–6 Torch Type: Water-cooled : Water-cooled Air Flow Required (CFM): 5–6 : 5–6

Inverter Based Air Plasma Cutting Machine Aircut- i Series Machine are Inverter Based Air Plasma Cutting Machines. They Are Widely Used for Cutting Ferrous as well as Non Ferrous Metals Using Inexpensive Air as the Cutting Media. FEATURES: Advanced 'Soft Switching' Technology, Hence More Reliability. High Frequency Arc Striking with Pilol Arc. Stable Out Put Current Precise Preset & Display of Cutting Current Air Test Switch to Set the Air Flow Precisely. Pressure gauge on the front panel Higher on load voltage & hence higher speed of cutting. High Power Factor & Efficiency. Good Cutting Quality. Continuous Adjustment of Current Possible. Two levels of Air flow to Ensure Smooth Pilot Arc. Optional Accessories: Machine mountable Straight torch. Plasma trolley with rail. Torch pendant for ON/OFF control. Basic Outfits: Power Source, 5mtr Length Air Plasma Cutting Torch, Air Filter & Earthing Cable with clamp. Nozzle. 3 sets of Electrode.

Inverter Based Air Plasma Cutting Machine AIRCUT- 162 IW is inverter based air plasma cutting machine. It is widely used for cuting ferrous as well as non ferrous metals using inexpensive compressed air as the cutting media. FEATURES: Advanced 'Soft Switching' Technology, Hence More Reliability. High Frequency Arc Striking with Pilol Arc. Stable Out Put Current Pressure gauge on the front panel to check air supply. Precise preset & display of cutting current Air test switch to Set the Air Flow precisely. High power Factor & Efficiency Stable output current. Good Cutting Quality Continuous Adjustment of Current Possible. Built in water circulation system. Suitable for hand held & mechanised torch. Two levels of Air flow to ensure smooth pilot arc. Higher on load cutting & hence higher speed & cutting. Optional Accessories: Machine mountable Straight torch. Plasma Trolley. Torch pendant for ON/OFF control. Basic Outfits: Power Source with inbuilt water cooling system. Water cooled plasma torch of mtr length. Air filter. Earthing cable with clamp. 3 sets of Electrode Nozzle Model: AIRCUT-162 IW Input Power (kVA): 32.5 Clean Cut Thickness (MS, SS): 50 mm Rough Cut Thickness (MS, SS): 55 mm Piercing Capacity: 25 mm Recommended Thickness (Plasma Trolley) : 38 mm Current Range (A): 30 – 160 No Load Voltage (DC): 400 VDC Duty Cycle: 100% (at 40°C for 10 min) Torch Cooling Type: Water Gas Type: Air Weight (Kg): 100 Input Supply: 380–440 V, 3-phase, 50 Hz Efficiency: 85% Power Factor: 0.85 Air Pressure: 5–6 kg/cm² or 0.4–0.6 MPa Air Flow Required: 5–6 CFM or >180 l/min Dimensions (L×W×H mm): 740 × 400 × 1050

Aircut- i Series Machine are Inverter Based Air Plasma Cutting Machines. They Are Widely Used for Cutting Ferrous as well as Non Ferrous Metals Using Inexpensive Air as the Cutting Media. These Machines are available in 65 Amps. FEATURES: Advanced 'Soft Switching' Technology, Hence More Reliability. High Frequency Arc Striking with Pilol Arc. Stable Out Put Current Cutting Current Will Slowly Increase to Increase the Life of Electrodes Nozzle. Precise Preset & Display of Cutting Current Air Test Switch to Set the Air Flow Precisely High Power Factor & Efficiency. Good Cutting Quality. Continuous Adjustment of Current Possible. Model : AIRCUT-65i Cutting Thickness (Clean Cut): MS, SS – 12 mm Cutting Thickness (Rough Cut): MS, SS – 18 mm Input Power (WVA): 9.5 Current Range (A): 25 – 65 No Load Voltage (DC): 380 Weight (Kg): 26 Duty Cycle: 60% Torch Cooling Type: Air Input Supply: 380–440 V, 3-phase, 50 Hz Power Factor: 0.9 Dimensions (L × W × H in mm): 570 × 270 × 520 Air Pressure Required : 5–6 kg/cm² or 0.4–0.6 MPa Air Flow Required: 5–6 CFM or > 180 L/min

Inverter Based Air Plasma Cutting Machine AIRCUT IMech is inverter based Air plasma cutting machine specifically designed for mechanized cutting applications. Microprocessor based control gives consistent performance and precise control.The power source is designed for continuousoperation on mechanized systems High frequency operation coupled with higher output reactor delivers smooth output which resultsin better cut. FEATURES: Inverter based with latest soft switching technology for higher reliability. Better power factor. Non High frequency pilot arc makes it CNC controller friendly. 20% more piercing current than the full rated current. Protection against under voltage, over voltage, and over temperature. Adjustable Pilot arc current. Adjustable Post air flow time to allow sufficient cooling time for the torch. Voltage feed back signal to the controller /Height controller. Low volume,Weight and power saving. Microcontroller based for precision control. Adjustable piercing current and piercing control. Up sloping of current to increase the life of electrode and nozzle. Protection against air supply failure /Low air. Adjustable down slope. Air test Function to set up the machine. Cut start signal to the controller. Model: AIRCUT-100 IMech : AIRCUT-125 IMech Input Power (KVA): 18 : 25 Current Range (A): 15-100 : 15-125 Weight (Kg): 50 : 55 Piercing Current: 15-120 Amps : 15-160 Amps Plasma Cutting Torch (Air Cooled): 125 Amps : 160 Amps Production/Pierce Thickness: 16 mm : 20 mm Cutting Taper: 3-6 degree : 3-6 degree Edge Cutting Capacity: 30 mm : 35 mm Input Supply: 380 ~ 440 Volts 3 Phase 50 Hz 3 Wire supply : 380 ~ 440 Volts 3 Phase 50 Hz 3 Wire supply Open Circuit Voltage: 300 V DC : 300 V DC Pilot Arc Time (Sec): 0-10 : 0-10 Pierce Time (Sec): 0-3 : 0-3 Up/Down Slope Time (Sec): 0-5 : 0-5 Air Post Flow Time (Sec): 0~60 : 0~60 Pilot Arc Current Range (A) : 15-40 : 15-40 Duty Cycle: 100% : 100% Dimensions : (LxWxH in mm) 720 x 330 x 550 : 720 x 330 x 550

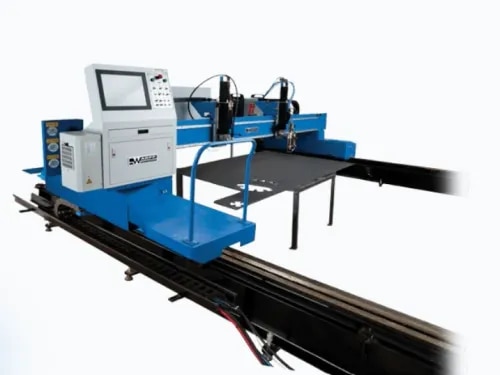

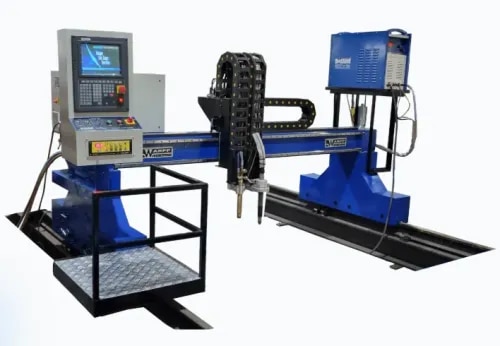

Shape Cut Fine Series CNC Cutting Machine: The Shape Cut Fine Series CNC cutting machine is designed for high precision flame and plasma cutting. It offers flexibility in size, advanced control systems, and reliable servo-driven dual drive operation, making it suitable for heavy-duty industrial applications. Model Shape Cut Fine Series: Rail Centre Distance: 4000 mm - 9000 mm Cutting Width: 3000 mm - 8000 mm Rail Length: 4000 mm to as per customer requirement Actual Cutting Length: 2200 mm to as per customer requirement Drive System : Dual Drive Drive Motor: Servo Motor Type of Cutting: Flame/Plasma/Flame & Plasma Type of Rail: 24, 43 Kg/m rail depending upon width Height Controller: Arc Voltage Height Controller along with plasma station Torch Station & Elevator: Single torch station & elevator for both flame & plasma Drive Mechanism: Rack & pinion along with linear slide Controller: 2 axis controller / as per customer requirement

Features MS fabricated structure with tubular section 24 Kg/m rail with 5 point machined surface Wheel base of 1200 mm for enhanced stability Panasonic AC Servo motors and drives Sesame / Shimpo gear box with less than 15 arc minutes Spring loaded gearbox fitting for all three drives HIWIN linear motion guideways Input line filter for drives Independent Z axis motorized slide for plasma and flame HYD 200 DC height controller Plasma source with no high frequency (Under 125 Amps) 100% duty cycle plasma power source 100% duty cycle plasma torch Plasma torch with shield Settable pierce current and pierce time Quality consumables Higher cutting voltage for faster cutting speeds
