Warpp welding machine by Warpp

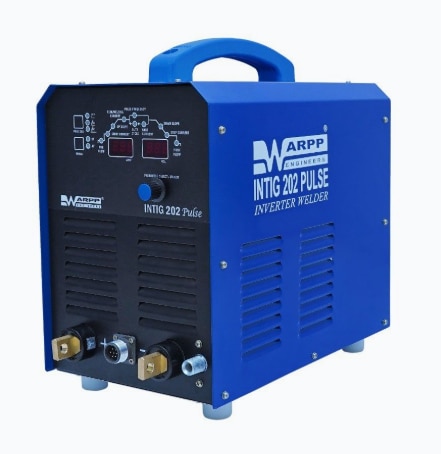

INTIG 202 & 250 Pulse Digital Inverter Based MMA/TIG/PULSE Tig Welding machine

Phone Number

08048034591

Please keep 0 before dialling the number.

Email Address sales@bhavintech.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address 39/2/5, Sahibabad Industrial Area Site 4, Sahibabad, Ghaziabad, Uttar Pradesh 201010

Ghaziabad, India, 201010

Description

INTIG 202 & 250 Pulse Digital Inverter Based MMA/TIG/PULSE Tig Welding machine General Information: Digital Inverter Based MMA / TIG / Pulse TIG Welding Machine INTIG PULSE Series machines are microprocessor controlled fully Digital lGBT Inverter based arc welding power source with advanced inverter technology. They are widely used for DC MMA, DC TIG & DC PULSE TIG welding In mild steel, alloy steel, stainless steel, copper & Titanium. Features: Advanced inverter technology, hence more reliability. Micro controller based technology for precise setting of welding parameters Under voltage, Over voltage, Phase absence and over heat protection. Digital preset of all welding parameters. High Efficiency, Better power factor. Built In High Frequency. 2/4 Step function. Built in gas control solenoid valve. Optional Accessories: Water circulation System, TIG Torch, Gas Regulator and remote controller. Basic Outfits: Power Source with wheels & Remote Socket for Torch Trigger Switch. Model : INTIG-202 Pulse : INTIG-250 Pulse Input Power (KVA): 7.5 : 9.8 Welding Current Range (A): 5-200 : 5-250 Peak/Base Current (A): 5-200 : 5-250 Start/Stop Current (A): 5-200 : 5-250 Weight (Kg): 19 : 23 Duty Cycle: 60% : 60% Dimensions (LxWxH mm): 530 x 240 x 400 : 530 x 270 x 420 Input Supply: 230V Single Phase 50Hz : 380-440 V 3-Phase 50 Hz Open Circuit Voltage (V): 75 : 75 Insulation Grade: H : H Up/Down Slope Time (Sec): 0-10 : 0-10 Pre Gas Time (Sec): 0-5 : 0-5 Post Gas Time (Sec): 0-60 : 0-60 Pulse Frequency (Hz): 0.2-99.9 : 0.2-99.9 Pulse Duty Cycle (%): 5-100 : 5-100 Efficiency at full load (%): 89 : 89 Power Factor: 0.95 : 0.95
