Description

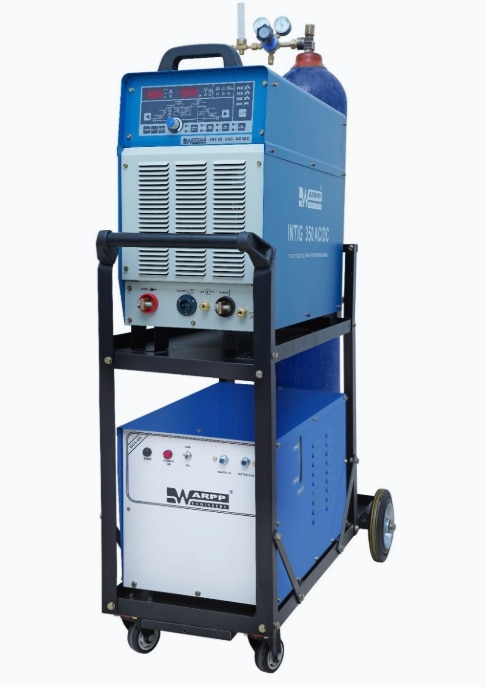

INTIG 350 AC/DC OUTFIT AND INTIG 501 AC/DC OUTFIT
General Information:
DIGITAL INVERTER BASED AC/DC SQUARE WAVE TIG WELDING MACHINE
INTIG-AC/DC Series machines are microprocesser controlled fully digital IGBT inverter based arc welding power source with soft switching technology. They are widely used for DC TIG, DC PULSE TIG / AC Square wave TIG and AC Square Wave Pulse TIG welding in various metals including Al. and Mg alloy.
Features:
Advanced Soft Switching technology, hence more reliability.
Micro controller based technology for precise setting of welding parameters.
Under voltage, Over Voltage, Phase absence and over heat protection.
Digital preset of all welding parameters.
Memory channels to store parameters.
High efficiency, Better power factor.
Light Weight but high duty cycle.
Built in High Frequency..
Gas Check Facility.
2/ 4Step function.
14 ltrs.Water tank made from heat resistant PVC material.
Specially designed Vortex Pump with brass body.
Three Stage copper tube cooling radiator combined with separate.
High Speed fan ensures efficient heat transfer to keep the torches cool.
Water level indication.
High Speed Cooling fan for Water Circulation Unit.
Basic Outfits:
Power Source with Wheels
Water Cooling System
Tig torches 4/8 mtrs.
Regulator + Flowmeter
Flowswitch
Earthing Cable with clamp
Trolley
Starter Kit
Remote socket for Torch Trigger Switch.
Optional Accessories:
Wired Remote Controller
Model: INTIG-350 AC/DC OUTFIT : INTIG-501 AC/DC OUTFIT
Peak / Base Current (A): DC 10-350 / AC 20-350 : DC 10-355 / AC 20-500
Input Power (KVA): 11 : 19.5
Open Circuit Voltage (V): 70-80 : 70-80
Max Welding Current (MMA/TIG): MMA 255 / TIG 350 : MMA 400 / TIG 500
Dimensions (L × W × H) mm: 1010 x 400 x 1340 : 1010 x 400 x 1380
Weight (Kg): 110 : 122
Input Supply: 380-440 V 3-Phase 50 Hz (Power Source), 230 V Single Phase 50 Hz (Water Circulation Unit) : 380-440 V 3-Phase 50 Hz (Power Source), 230 V Single Phase 50 Hz (Water Circulation Unit)
Duty Cycle (%): 60% (40°C & 10 Min Standard) : 60% (40°C & 10 Min Standard)
Efficiency (%): 85 : 85
Gas Pre Flow (Sec): 0-5 : 0-5
Post Gas Flow (Sec): 0-20 : 0-20
Up Slope Time (Sec): 0.1-10 : 0.1-10
Down Slope Time (Sec): 0.1-15 : 0.1-15
Pulse Frequency (Hz): 0.2-99.9 : 0.2-99.9
Pulse Duty Cycle (%): 10-90 : 10-90
AC Welding Frequency (Hz): 20-200 : 20-200
Power Factor: 0.9 : 0.9
