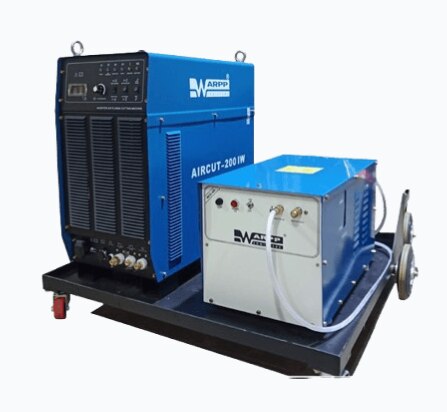

INVERTER BASED AIR PLASMA CUTTING MACHINE AIRCUT - 200 - 300IW AIRCUT- 200 IW, AIRCUT- 300 IW machine are inverter based air plasma cutting machine. They are widely used for cutting ferrous as well as non ferrous metals using inexpensive air as the cutting media.
FEATURES:
Advanced ‘Soft switching’ technology, hence more reliability
High Frequency Arc Striking
High power factor & efficiency
Good cutting quality
Continuous adjustment of current possible
Air Failure protection switch with indication
Water failure Protection with indication
Protection against thermal over load
Two levels of air flow system to ensure smooth pilot arc
Up sloping of current to increase the consumable life
Higher on-load voltage and hence higher speed of cutting
Bigger output inductor for extra smooth DC output which results in better cut finish
Customer Scope:
Power source along with water cooling system 5 mtr hand held water cooling torch,Air filter,Earthing Cable, 3 sets of Electrode,Nozzle.
Model : AIRCUT-200 IW : AIRCUT-300 IW
Clean Cut Thickness: 70 mm (MS, SS) : 100 mm (MS, SS)
Rough Cut Thickness: 75 mm (MS, SS) : 105 mm (MS, SS)
Recommended on Trolley: 55 mm : 80 mm
Input Power (KVA): 39 : 70
Current Range (A): 60 – 200 : 80 – 300
No Load Voltage (DC): 380 VDC : 380 VDC
Input Supply: 380–440 V, 3-phase, 50 Hz : 380–440 V, 3-phase, 50 Hz
Efficiency: 85% : 85%
Power Factor: 0.85 : 0.85
Duty Cycle: 100% : 100%
Air Pressure (kg/cm²): 5–6 : 5–6
Torch Type: Water-cooled : Water-cooled
Air Flow Required (CFM): 5–6 : 5–6
