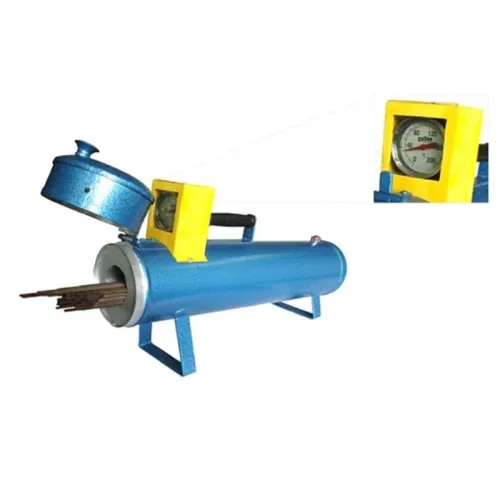

The HIEC:200 Portable Electrode Drying Oven is designed to maintain welding electrodes in optimal condition by providing consistent and controlled heat, ensuring maximum welding performance in both workshop and field applications. Its lightweight, portable design allows easy transportation to job sites, making it an ideal solution for on-site fabrication, construction, maintenance, and industrial welding operations.Built with rugged steel construction for long-lasting durability, the HIEC:200 delivers even, continuous heating to protect electrodes from moisture absorption, helping maintain weld quality, reduce defects, and improve productivity. Whether used in the workshop or at remote project locations, this portable drying oven ensures reliable electrode storage and superior welding results.

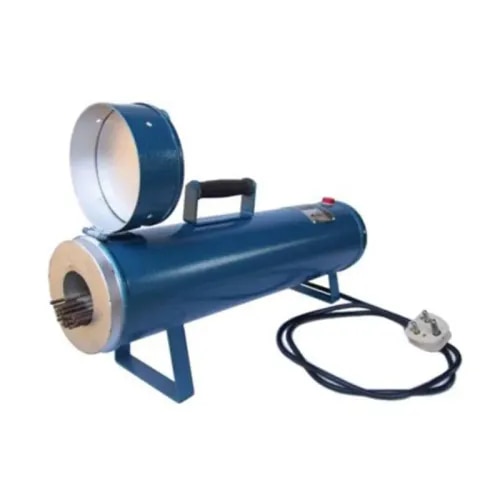

The Portable Electrode Drying Oven is engineered to keep welding electrodes dry, protected, and ready for use in both workshop and field environments. Its lightweight, portable design allows it to be easily carried to the job site, providing convenience without compromising performance.Designed to deliver uniform and continuous heat, the oven effectively prevents moisture absorption, ensuring maximum electrode protection and consistent welding quality. Constructed with rugged, heavy-duty steel, it is built to withstand demanding industrial conditions while offering long-lasting reliability.

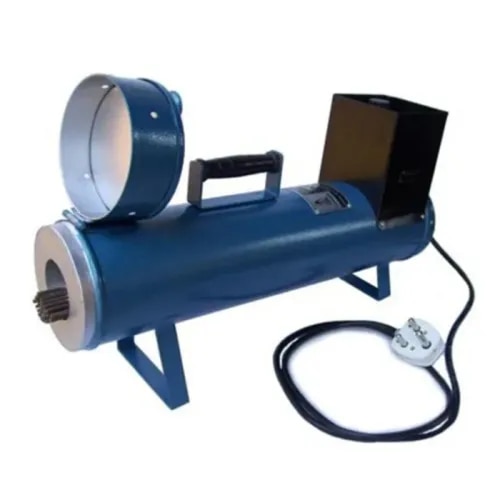

Designed for both workshop and field applications, the Portable Electrode Drying Oven is lightweight and easy to carry wherever welding operations are required. It delivers uniform and continuous heat to provide complete protection against moisture, ensuring electrodes remain in optimal condition for superior welding performance. Built with rugged steel construction, it offers exceptional durability and reliable performance even in demanding industrial environments.

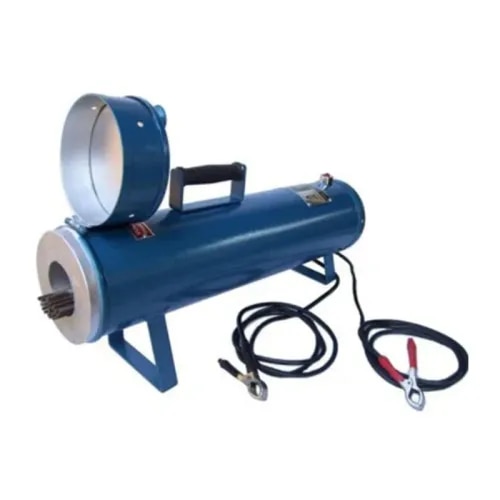

The Portable Electrode Drying Oven (Model: HIEC:200) is designed to ensure safe storage and effective moisture protection for welding electrodes in both workshop and field applications. Its lightweight, portable design allows for easy transportation, making it ideal for on-site welding operations.Engineered with rugged steel construction for long-lasting durability, the oven provides uniform and continuous heat distribution, ensuring 100% protection of electrodes from moisture absorption. By maintaining the optimal drying temperature, it helps preserve electrode quality, improve weld integrity, and minimize welding defects.

INARC I Series machines are IGBT inverter based arc welding power source with soft switching technology.They are widely used for Carbon arc gouging & manual metal arc welding with acid and basic electrodes. FEATURES: Advance Soft Switching inverter technology and high efficiency Easy arc striking & stable arc Digital display of current with precise preset function Digital Display of Voltage High power factor High switching frequency, hence low volume & weight Adjustable arc force Can be used with extended welding cable. OPTIONAL ACCESSORIES: Gouging Torch Wired & Wireless Remote Controller Wired Remote Controller with digital display of current BASIC OUTFITS: Power Source with wheels Model - INARC-1000 I Input Supply - 380~440 V 3-Phase 50 Hz Supply Efficiency at full load (%) - 86 Input Capacity (KVA) - 54 Open Circuit Voltage - 75-85 Volts Welding Current Range (A) - 50-1000 Rated Duty Cycle - 100% Ambient Temperature - 40°C Dimensions (LxWxH) mm - 820x420x940 Weight (KG) - 95 Power Factor - 0.95 Type of cooling - Forced Air cooled Input Power (KVA) - 54

INARC - 400 I CEL Series Machines are IGBT based arc welding power source with soft switching technology. They are widely used for manual metal arc welding with acid, basic & cellulosic electrodes. FEATURES: Advanced Soft Switching Inverter Technology and high efficiency. Easy arc striking & stable arc Digital display of current with precise pre set function Digital display of Voltage High power factor High Switching Frequency, hence low volume and weight Adjustable arc force Can be used with extended welding cable Wireless remote controller. Optional Accessories: Wired & Wireless Remote Controller Wired Remote Controller with digital display of current Basic Outfits: Power Source with wheels Specification: Model - INARC-400 I CEL Input Power (KVA) - 18.4 Current Range (A) - 20 - 400 Duty Cycle (%) - 100% Weight (Kg) - 38 Input Supply - 380 - 440 V, 3 Phase, 50 Hz Open Circuit Voltage (V) - 75 Efficiency at Full Load (%) - 89 Power Factor - 0.95 Ambient Temperature - 40°C Dimensions (L × W × H) (mm) - 600 x 300 x 560

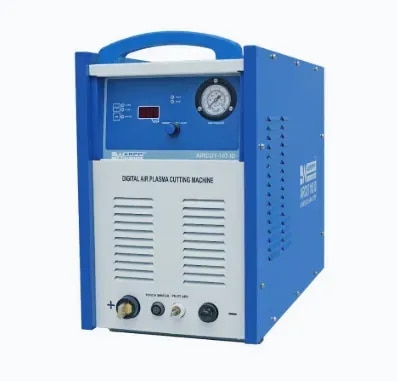

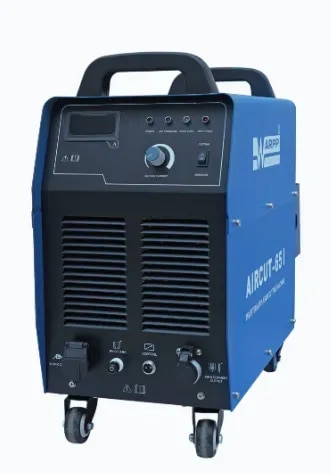

Aircut- i Series Machine are Inverter Based Air Plasma Cutting Machines. They Are Widely Used for Cutting Ferrous as well as Non Ferrous Metals Using Inexpensive Air as the Cutting Media. These Machines are available in 65 Amps. FEATURES: Advanced 'Soft Switching' Technology, Hence More Reliability. High Frequency Arc Striking with Pilol Arc. Stable Out Put Current Cutting Current Will Slowly Increase to Increase the Life of Electrodes Nozzle. Precise Preset & Display of Cutting Current Air Test Switch to Set the Air Flow Precisely High Power Factor & Efficiency. Good Cutting Quality. Continuous Adjustment of Current Possible. Model : AIRCUT-65i Cutting Thickness (Clean Cut): MS, SS – 12 mm Cutting Thickness (Rough Cut): MS, SS – 18 mm Input Power (WVA): 9.5 Current Range (A): 25 – 65 No Load Voltage (DC): 380 Weight (Kg): 26 Duty Cycle: 60% Torch Cooling Type: Air Input Supply: 380–440 V, 3-phase, 50 Hz Power Factor: 0.9 Dimensions (L × W × H in mm): 570 × 270 × 520 Air Pressure Required : 5–6 kg/cm² or 0.4–0.6 MPa Air Flow Required: 5–6 CFM or > 180 L/min

Inverter Based Air Plasma Cutting Machine AIRCUT IMech is inverter based Air plasma cutting machine specifically designed for mechanized cutting applications. Microprocessor based control gives consistent performance and precise control.The power source is designed for continuousoperation on mechanized systems High frequency operation coupled with higher output reactor delivers smooth output which resultsin better cut. FEATURES: Inverter based with latest soft switching technology for higher reliability. Better power factor. Non High frequency pilot arc makes it CNC controller friendly. 20% more piercing current than the full rated current. Protection against under voltage, over voltage, and over temperature. Adjustable Pilot arc current. Adjustable Post air flow time to allow sufficient cooling time for the torch. Voltage feed back signal to the controller /Height controller. Low volume,Weight and power saving. Microcontroller based for precision control. Adjustable piercing current and piercing control. Up sloping of current to increase the life of electrode and nozzle. Protection against air supply failure /Low air. Adjustable down slope. Air test Function to set up the machine. Cut start signal to the controller. Model: AIRCUT-100 IMech : AIRCUT-125 IMech Input Power (KVA): 18 : 25 Current Range (A): 15-100 : 15-125 Weight (Kg): 50 : 55 Piercing Current: 15-120 Amps : 15-160 Amps Plasma Cutting Torch (Air Cooled): 125 Amps : 160 Amps Production/Pierce Thickness: 16 mm : 20 mm Cutting Taper: 3-6 degree : 3-6 degree Edge Cutting Capacity: 30 mm : 35 mm Input Supply: 380 ~ 440 Volts 3 Phase 50 Hz 3 Wire supply : 380 ~ 440 Volts 3 Phase 50 Hz 3 Wire supply Open Circuit Voltage: 300 V DC : 300 V DC Pilot Arc Time (Sec): 0-10 : 0-10 Pierce Time (Sec): 0-3 : 0-3 Up/Down Slope Time (Sec): 0-5 : 0-5 Air Post Flow Time (Sec): 0~60 : 0~60 Pilot Arc Current Range (A) : 15-40 : 15-40 Duty Cycle: 100% : 100% Dimensions : (LxWxH in mm) 720 x 330 x 550 : 720 x 330 x 550

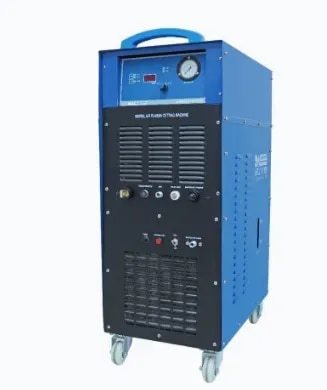

Inverter Based Air Plasma Cutting Machine AIRCUT- 162 IW is inverter based air plasma cutting machine. It is widely used for cuting ferrous as well as non ferrous metals using inexpensive compressed air as the cutting media. FEATURES: Advanced 'Soft Switching' Technology, Hence More Reliability. High Frequency Arc Striking with Pilol Arc. Stable Out Put Current Pressure gauge on the front panel to check air supply. Precise preset & display of cutting current Air test switch to Set the Air Flow precisely. High power Factor & Efficiency Stable output current. Good Cutting Quality Continuous Adjustment of Current Possible. Built in water circulation system. Suitable for hand held & mechanised torch. Two levels of Air flow to ensure smooth pilot arc. Higher on load cutting & hence higher speed & cutting. Optional Accessories: Machine mountable Straight torch. Plasma Trolley. Torch pendant for ON/OFF control. Basic Outfits: Power Source with inbuilt water cooling system. Water cooled plasma torch of mtr length. Air filter. Earthing cable with clamp. 3 sets of Electrode Nozzle Model: AIRCUT-162 IW Input Power (kVA): 32.5 Clean Cut Thickness (MS, SS): 50 mm Rough Cut Thickness (MS, SS): 55 mm Piercing Capacity: 25 mm Recommended Thickness (Plasma Trolley) : 38 mm Current Range (A): 30 – 160 No Load Voltage (DC): 400 VDC Duty Cycle: 100% (at 40°C for 10 min) Torch Cooling Type: Water Gas Type: Air Weight (Kg): 100 Input Supply: 380–440 V, 3-phase, 50 Hz Efficiency: 85% Power Factor: 0.85 Air Pressure: 5–6 kg/cm² or 0.4–0.6 MPa Air Flow Required: 5–6 CFM or >180 l/min Dimensions (L×W×H mm): 740 × 400 × 1050

Inverter Based Air Plasma Cutting Machine Aircut- i Series Machine are Inverter Based Air Plasma Cutting Machines. They Are Widely Used for Cutting Ferrous as well as Non Ferrous Metals Using Inexpensive Air as the Cutting Media. FEATURES: Advanced 'Soft Switching' Technology, Hence More Reliability. High Frequency Arc Striking with Pilol Arc. Stable Out Put Current Precise Preset & Display of Cutting Current Air Test Switch to Set the Air Flow Precisely. Pressure gauge on the front panel Higher on load voltage & hence higher speed of cutting. High Power Factor & Efficiency. Good Cutting Quality. Continuous Adjustment of Current Possible. Two levels of Air flow to Ensure Smooth Pilot Arc. Optional Accessories: Machine mountable Straight torch. Plasma trolley with rail. Torch pendant for ON/OFF control. Basic Outfits: Power Source, 5mtr Length Air Plasma Cutting Torch, Air Filter & Earthing Cable with clamp. Nozzle. 3 sets of Electrode.

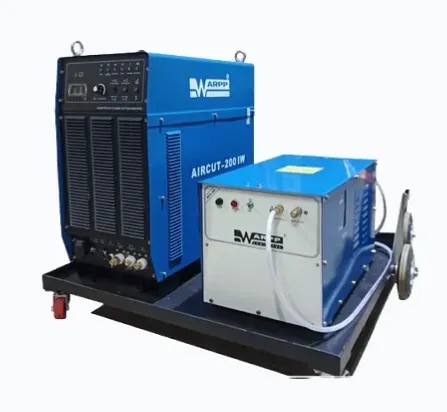

INVERTER BASED AIR PLASMA CUTTING MACHINE AIRCUT - 200 - 300IW AIRCUT- 200 IW, AIRCUT- 300 IW machine are inverter based air plasma cutting machine. They are widely used for cutting ferrous as well as non ferrous metals using inexpensive air as the cutting media. FEATURES: Advanced ‘Soft switching’ technology, hence more reliability High Frequency Arc Striking High power factor & efficiency Good cutting quality Continuous adjustment of current possible Air Failure protection switch with indication Water failure Protection with indication Protection against thermal over load Two levels of air flow system to ensure smooth pilot arc Up sloping of current to increase the consumable life Higher on-load voltage and hence higher speed of cutting Bigger output inductor for extra smooth DC output which results in better cut finish Customer Scope: Power source along with water cooling system 5 mtr hand held water cooling torch,Air filter,Earthing Cable, 3 sets of Electrode,Nozzle. Model : AIRCUT-200 IW : AIRCUT-300 IW Clean Cut Thickness: 70 mm (MS, SS) : 100 mm (MS, SS) Rough Cut Thickness: 75 mm (MS, SS) : 105 mm (MS, SS) Recommended on Trolley: 55 mm : 80 mm Input Power (KVA): 39 : 70 Current Range (A): 60 – 200 : 80 – 300 No Load Voltage (DC): 380 VDC : 380 VDC Input Supply: 380–440 V, 3-phase, 50 Hz : 380–440 V, 3-phase, 50 Hz Efficiency: 85% : 85% Power Factor: 0.85 : 0.85 Duty Cycle: 100% : 100% Air Pressure (kg/cm²): 5–6 : 5–6 Torch Type: Water-cooled : Water-cooled Air Flow Required (CFM): 5–6 : 5–6

In automated or semi-automatic welding systems, a torch pole with a pneumatic slide is a common component that allows for exact linear welding torch adjustment. It enables rapid and controlled movement of the torch in a single axis (usually up/down or in/out) by combining a pneumatic cylinder and slide mechanism with a sturdy pole for mounting the torch. Key Features: PROGRAMMABLE SPEED OVERLAP WELD FUNCTION PNUEMATIC TORCH SLIDE MOTOR ON DELAY WELDING ON DELAY Technical Specification: Face plate: 400mm Diameter Capsule T Slot: 4 x M10 Rotation: AC Motor Tilting: Manual Speed Adjustment: AC Drive Control Panel: MS Fabricated Torch Pole with Pnuematic Slide: Optional XY Slide: Optional Welding Chuck: Optional
