Robologic delivers compact design welding manipulator. It can support both circumferential and longitudinal welding application from small tube to big tank. Our welding manipulator has maximized both safety and productivity. It can work on different welding process. It can work with welding Positioner or turning rolls as a cost saving welding package to make welding stable and easy. Special design manipulators are available at request. Key Features: Anti falling safety mechanism Precision LM guide ways for smooth travelling Heavy duty Structure to Enhance Durability High quality Gear Reducers Reputed make Control Elements & Switchgears Linear Travel car option available

Flexible welding Carriage been used for linear seam weld on Tanks, curved beam or steel structure having irregular curve with MIG/MAG welding process. Carriage includes Torch Clamp with Compact XY Slide compatible with torch diameter of 16-22 mm. carriage moves on flexible track with magnetic Clamping. Main Features: Main Features Adjustable travel speed for consistent weld quality. Forward and reverse movement. Magnetic or track-guided movement for stability. Torch angle and height adjustment. Suitable for long, straight, circular, or curved welds. Compact and lightweight for easy transportation. Compatible with multiple welding processes.

Suitable for Fillet and Butt joints for Linear Seam Weld. Fix Track Provide Consistent motion and Ease of Setting. Remote Pendant Allows operator to work in a more comfortable Position. Oscillation with Programmable Function. Torch Fine Adjustment Using a Precise Cross Slide.

Magnetic Welding Carriage allows increasing your production and reducing your welding costs. By providing constant, non-stop travel at a regulated speed and consistent high-quality welds in a fraction of the time. The regulated travel speed creates weld bead geometry which is exact to your specifications, reducing costly over welding and decreasing filler metal usage.

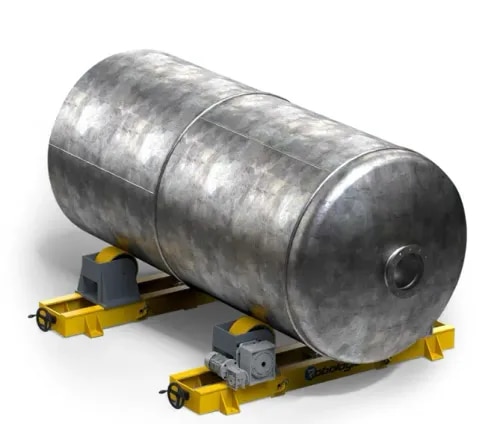

Rotators which are been used with various processes such as SAW / TIG / MIG / ARC etc., They minimize handling, increase efficiency, and dramatically improve the quality of workmanship from welders of all skill levels. Any steelworks with cylindrical vessels, be it small diameter piping to large industrial cylindrical vessels for wind tower production, a rotator will be beneficial, sometimes a necessity.

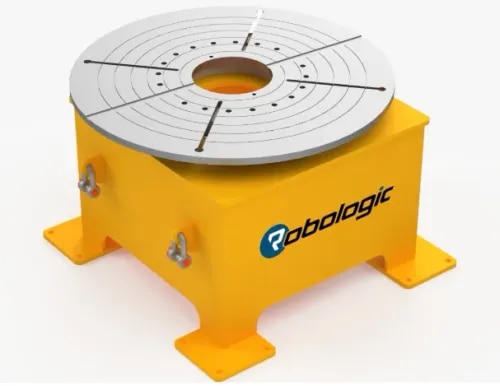

The component can rotate around its own axis with the use of rotary turn tables for automatic welding, giving the welder or automation system access to the whole weld surface. This makes it possible for welded joints to be distributed evenly, which results in consistency and stability in the weld.

Robologic make Circular Seam Welding SPM designed for high speed welding of Conveyor roller Welding for Conveyor Roller Manufacturer. Suitable for Diameter range from 50 mm to 200 mm OD Up To 4 Meter length. Also can use for Different welding Application. Roller Welding Automation Suitable for MIG, TIG and Laser welding Application and more similar component in other industries.

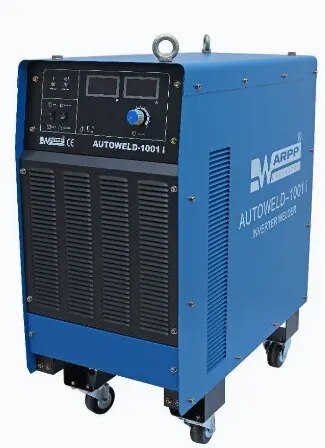

Inverter Based Saw Machine AUTOWELD-i Series machines are IGBT inverter based welding power sources with suitable tractor for submerged Arc Welding. The power source can be used for MMA welding and carbon arc gouging also. FEATURES: Advanced Soft Switching inverter technology. Can be used with SAW, MMA and Carbon Arc Gouging. 100% Duty Cycle. High Power Factor and Higher efficiency Digital Controller for precise control of voltage, current and trolley speed Pre-setting and digital display of voltage, Current & trolley speed Memory channel to store/recall the welding parameters Wire diameter selection facility for precise arc characteristics Easy angle adjustment of wire feeder head Model Input Power(kva) Current Range(A) Weight(kg) Autoweld-1001 I 53 100-1000 97 Autoweld-1001 I 65 100-1250 97

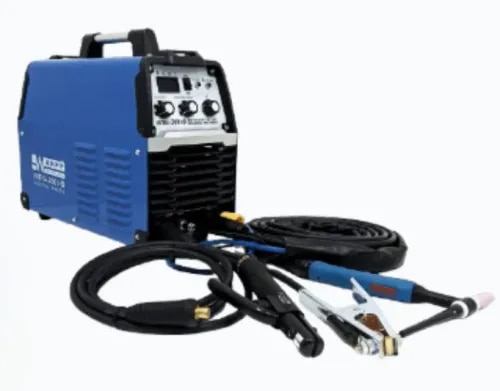

INTIG HD is Single Phase IGBT Inverter Based MMA/TIG Welding machine which can be used for Manual Metal Arc (MMA) Welding and Gas Tungsten Arc Welding (GTAW) in various kind of metals except AI & Mg. FEATURES: IGBT based inverter and hence more reliable Built in High Frequency for GTAW (TIG) Digital Display for set welding current Compact & Light in weight Better Welding Performance Higher Efficiency and better power factor Adjustable post gas time & down slope time in TIG. Adjustable arc force in MMA. BASIC OUTFITS: Power Source : INTIG HD 1.8 Meters of Welding cable witn welding holder 1.8 meters of Earthing cable wiith Earth Clamp Meters Long Gas Cooled Tig Torch. Model: INTIG 200 HD Input Supply: 230 ± 15% 50/60 Hz (Single Phase) Input Capacity: 7.5 KVA Open Circuit Voltage: 75-85 Volts Welding Current Range (A): MMA: 5-200 / TIG: 5-200 Rated Duty Cycle: 60% (40°C & 10 Min Standard) Dimensions (LxWxH) mm: 460 x 210 x 390 Efficiency (%) : 85 Power Factor: 0.9 Weight (KG): 14 Post Flow Time: 1-7 Sec Down Slope Time: 0-2 Sec

INARC 401 IH is IGBT arc welding power source.This employs IGBT module in full bridge topology.These machines are widely used for manual metal arc welding with acid, basic electrodes. FEATURES: IGBT Module with full bridge topology Easy arc striking & stable arc Digital display of current & voltage with a selector switch Digital Display of Voltage High power factor High switching frequency, hence low volume & weight Adjustable arc force Can be used with extended welding cable Standard Remote facility is available OPERATIONAL ACCESSORIES: Wire remote controller BASIC OUTFIT: Power source with wheels Model INARC-401 IH Input Supply: 380~440 V 3-Phase 50Hz Supply Efficiency at full load (%): 89 Power Factor: 0.95 Input Capacity (KVA): 18.4 Open Circuit Voltage: 75-85 Volts Welding Current Range (A): 20-400 Rated Duty Cycle: 60% Dimensions (LxWxH) mm: 520x290x570 Weight (KG): 26 Ambient Temperature: 40°C

INARC 400 IS is IGBT based arc welding power source. This employs IGBT module in full bridge topology. These machines are widely used for manual metal arc welding with acid , basic electrodes. FEATURES: IGBT Module with full bridge topology Easy arc striking & stable arc Digital Display of current with precise preset function Precise preset of current High Power factor High Switching frequency, hence low volume and weight Adjustable arc Force Can be used with extended welding cable Standard Remote facility is available. Optional Accessories: Wired Remote Controller Wired Remote Controller with digital display of current. Basic Outfits: Power Source with wheels. Model: INARC-400 IS Input Power (KVA): 18.4 Current Range (A): 20-400 Duty Cycle: 60% Weight (KG): 28 Input Supply: 380-440 V 3-Phase 50Hz Supply Efficiency at full load (%): 89 Open Circuit Voltage: 75-85 Volts Power Factor 0.95 Ambient Temperature 40°C Dimensions (LxWxH) mm 520x290x570

Automatic Ball Welding SPM for SS and MS ball with automatic loader. A Ball Welding SPM (Special Purpose Machine) is an automated welding system designed to accurately weld metal balls onto components with high precision, repeatability, and productivity. These machines are commonly used in automotive, valve manufacturing, furniture, hydraulic components, precision engineering, and industrial hardware applications. Advantages: Increases production efficiency Ensures uniform weld quality Reduces labor requirements Minimizes welding defects Improves operator safety Lowers production costs Suitable for mass production
