Description

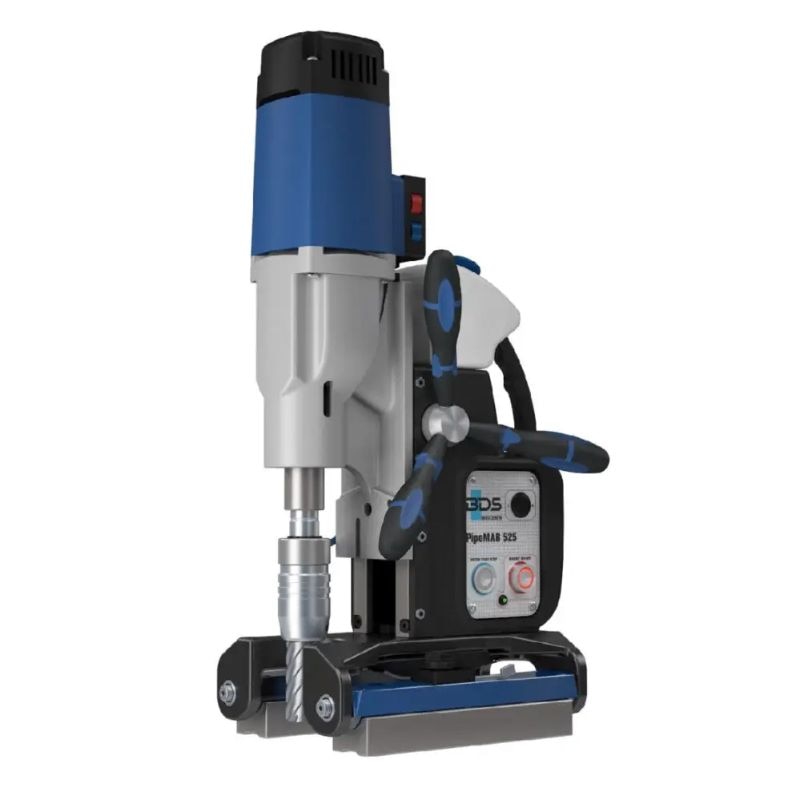

BDS PipeMAB 525 Magnetic Pipe Drilling & Tapping Machine The BDS PipeMAB 525** is an award-winning magnetic pipe drilling and tapping machine specially engineered for drilling, tapping, reaming, and countersinking on pipes, tubes, and curved surfaces. Manufactured in Germany, this innovative machine features a patented dual permanent magnet system that automatically adapts to pipe diameters, providing exceptional stability and precision even on challenging curved surfaces. Powered by a robust **1600 W motor** and equipped with a **two-speed oil-bath gearbox**, the PipeMAB 525 delivers outstanding performance for demanding industrial applications. The machine offers a core drilling capacity of up to **Ø 60 mm**, a cutting depth of **75 mm**, and a tapping capacity of **M20**, making it ideal for pipeline construction, maintenance, fabrication, and process industries. Its patented magnetic clamping system generates powerful holding force and securely grips pipes from **75 mm diameter and above**, while also working effectively on flat surfaces and materials as thin as **3 mm**. The reversible motor, variable speed and torque control, extended stroke, and MT3 Morse Taper spindle ensure maximum versatility and productivity in the field. Designed with operator safety and durability in mind, the PipeMAB 525 includes full-wave control electronics, overheat protection, safety clutch, carbon brush wear indicator, permanent internal lubrication, and a heavy-duty construction built for continuous industrial use. ### Key Features * Core drilling capacity up to **Ø 60 mm** * Maximum cutting depth **75 mm** * Thread cutting capacity up to **M20** * Twist drilling and reaming capacity up to **Ø 20 mm** * Countersinking capacity up to **Ø 50 mm** * Powerful **1600 W motor** * Two-speed oil-bath gearbox * Patented dual permanent magnet clamping system * Suitable for pipes from **75 mm diameter and above** * Strong magnetic adhesion on curved and flat surfaces * Works on material thickness as low as **3 mm** * MT3 Morse Taper spindle * Variable speed and torque control * Reversible motor for tapping applications * Overheat protection and safety clutch * Permanent internal lubrication * **Made in Germany** * **Available in India through Bhavin Tech** The **BDS PipeMAB 525** is the ideal solution for professionals seeking a reliable, precise, and highly versatile pipe drilling machine capable of delivering exceptional performance on both curved and flat metal surfaces.
