Description

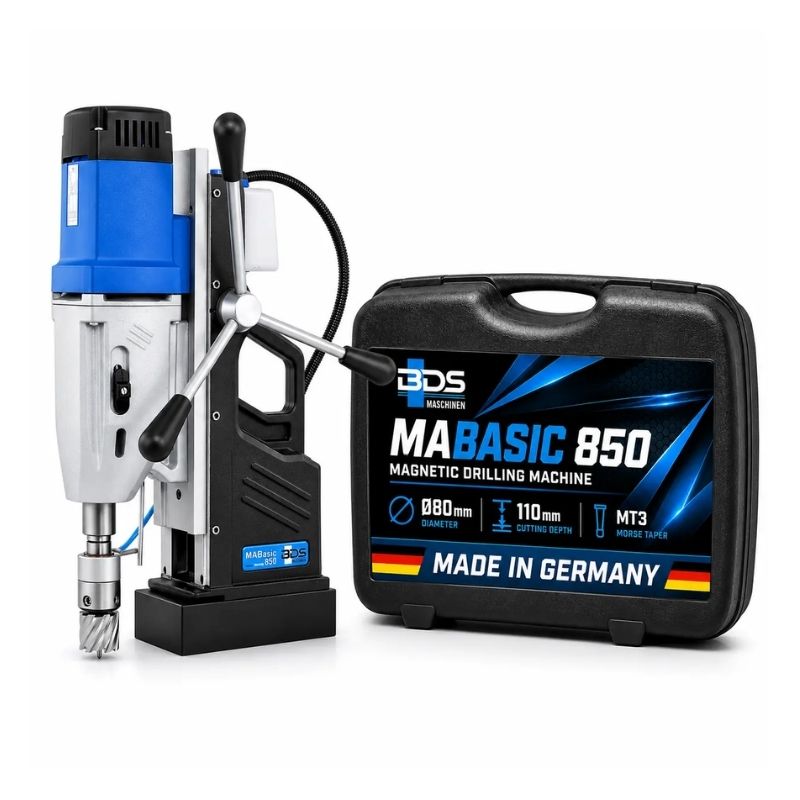

The BDS MABasic 850 Magnetic Drilling Machine is a high-performance magnetic core drilling machine designed for demanding industrial metalworking applications. Powered by a robust 1,800 W motor, it delivers reliable drilling performance and excellent cutting efficiency, even when working on larger and heavier components.
With a maximum core drilling capacity of 80 mm and a 110 mm cutting depth, the MABasic 850 is well suited for structural steel fabrication, machinery manufacturing, construction, maintenance, and other professional metalworking applications. Its 255 mm spindle stroke provides enhanced flexibility for machining larger workpieces.
The machine features a 4-speed gearbox and MT3 Morse taper, allowing operators to select the appropriate speed for different drilling requirements. Manufactured in Germany, the MABasic 850 combines powerful performance, precision, and dependable German engineering.
Key Features
Core Drilling Capacity: Up to Ø80 mm
Cutting Depth: Up to 110 mm
Motor Power: 1,800 W
Spindle Stroke: 255 mm
Gearbox: 4-speed
Spindle: MT3 Morse Taper
Heavy-Duty Construction: Suitable for demanding industrial applications
German Engineering: Manufactured in Germany
High Performance: Designed for efficient and reliable core drilling
Large Workpiece Capability: Extended stroke for machining larger components
Specifications
| Technical Specification |
Model -MABasic 850 |
| Speed |
4 Speed |
| Twist Drilling Diameter |
31.75mm |
| Cutting Depth |
110mm |
| Core Drilling Diameter |
80mm |
| Motor Output |
1800 Watt |
