Description

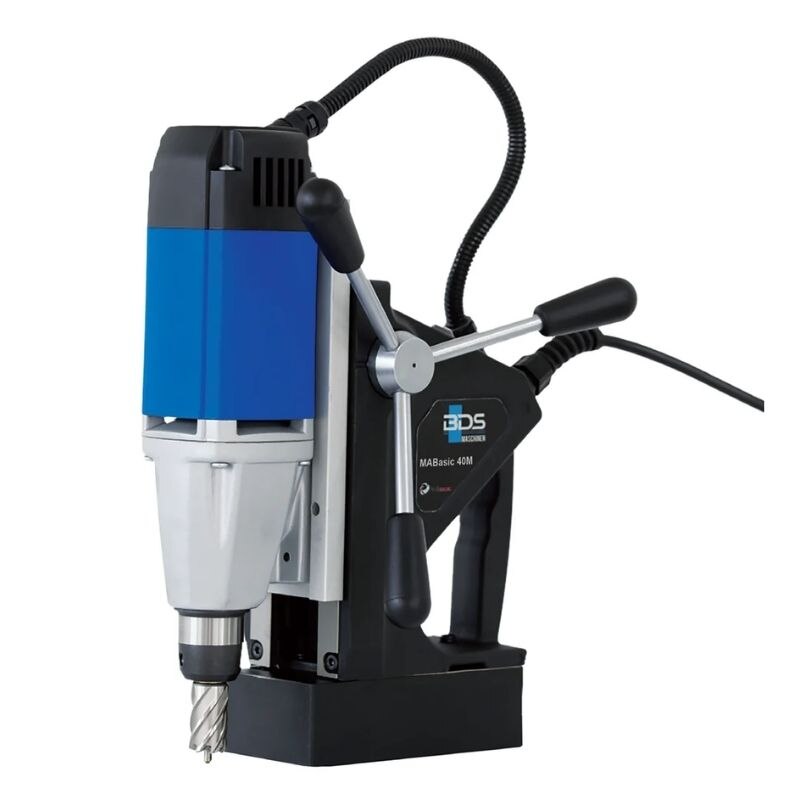

The BDS MABasic 40M is a compact, lightweight, and cost-effective magnetic drilling machine engineered by BDS Maschinen, Germany, for professionals who require reliable drilling performance in workshops and demanding on-site applications. With a 40 mm drilling capacity, 55 mm core cutting depth, and powerful 1100 W motor, the MABasic 40M delivers efficient and precise drilling across a wide range of metalworking applications.
Designed for maximum flexibility, the machine features a 1000 kgf magnetic holding force and can be used in multiple mounting positions, including vertical, horizontal, overhead, inclined, plate edge, pipe, and beam flange applications. Its 160 mm spindle travel and Weldon 19 mm tool holding system provide stable and accurate tool positioning during drilling operations.
Operating at a 450 rpm no-load speed, the MABasic 40M combines dependable performance with a compact design, making it an ideal solution for fabrication shops, structural steel work, bridge construction, tanks, boilers, towers, railways, shipbuilding, maintenance, and on-site drilling.
Key Features
40 mm maximum drilling capacity for versatile metalworking applications
55 mm core cutting depth for efficient hole-making
Powerful 1100 W motor for reliable drilling performance
1000 kgf magnetic force for secure positioning during operation
160 mm spindle travel for improved drilling flexibility
450 rpm no-load speed for controlled drilling performance
Weldon 19 mm tool holding for secure and stable tool mounting
Supports vertical, horizontal, overhead, inclined, and universal drilling positions
Suitable for beam flanges, plate edges, pipes, and structural steel
Compact and lightweight design for easy handling and transportation
Engineered for workshop as well as on-site applications
German engineering for dependable quality and durability
Specifications
| Technical Specification |
Model -MABasic 40 M |
| Motor Output |
1100 Watt |
| Speed |
1 Speed |
| Twist Drilling Diameter |
16mm |
| Cutting Depth |
55mm |
| Core Drilling Diameter |
40mm |
