Description

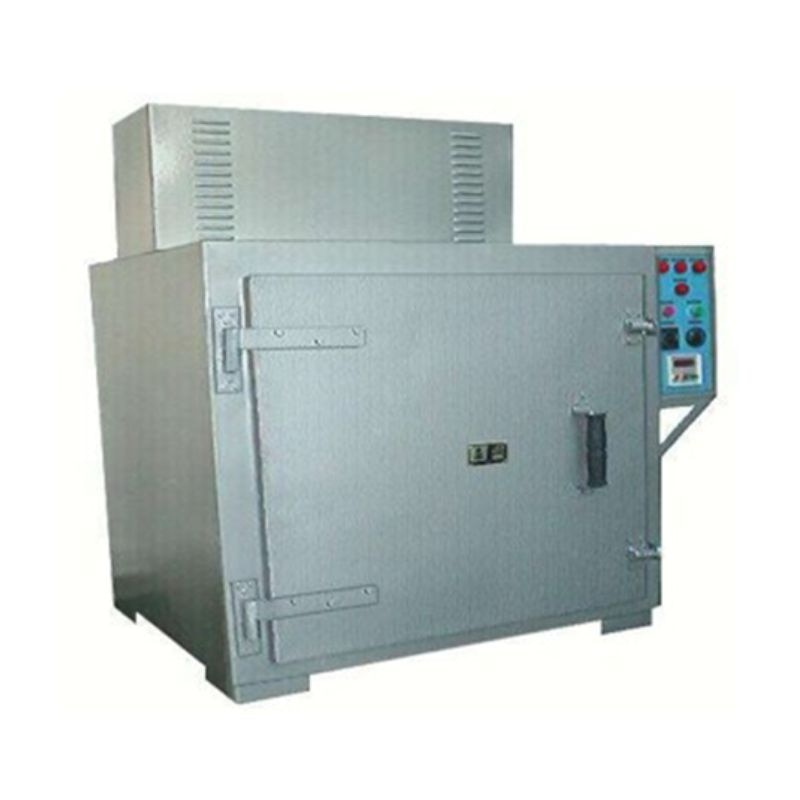

The HIEC 400 F 100Kg Front Load Flux Drying Oven is a high-performance solution designed for efficient drying, storage, and dispensing of welding flux in demanding industrial environments. Engineered for precision and reliability, it ensures that welding flux remains completely moisture-free, resulting in superior weld quality, improved productivity, and consistent welding performance.
Manufactured using premium-grade materials, all surfaces that come into contact with the flux—including the inner chamber, door, top surface, and flux dispensing mechanism—are fabricated from SS 304 stainless steel. This eliminates the risk of flux contamination while significantly enhancing the oven's durability and service life.
Key Features
100 kg flux holding capacity
Front-loading design for easy loading and operation
SS 304 stainless steel construction on all flux-contact surfaces to prevent contamination
Uniform heating throughout the chamber for complete moisture removal
Indirect heating system prevents overheating and slag formation
Specially designed chamber with smooth bottom discharge for complete flux dispensing
PID temperature controller for precise temperature control
Independent safety controller to prevent temperature overshoot
High-performance insulation for maximum energy efficiency
Heavy-duty powder-coated exterior for durability and corrosion resistance
Suitable for SAW (Submerged Arc Welding) and other industrial welding applications requiring dry, contamination-free flux
Specifications
| Technical Specifications |
HIEC 400 F ,100Kg |
| Air Circulation |
Forced Air |
| Input Supply |
415 V, Three phase AC, 50 Hz |
| Input Current |
17.2 Amps / Phase |
| Input Power |
12 kW |
| Weight (approx) |
475 Kg. |
