Description

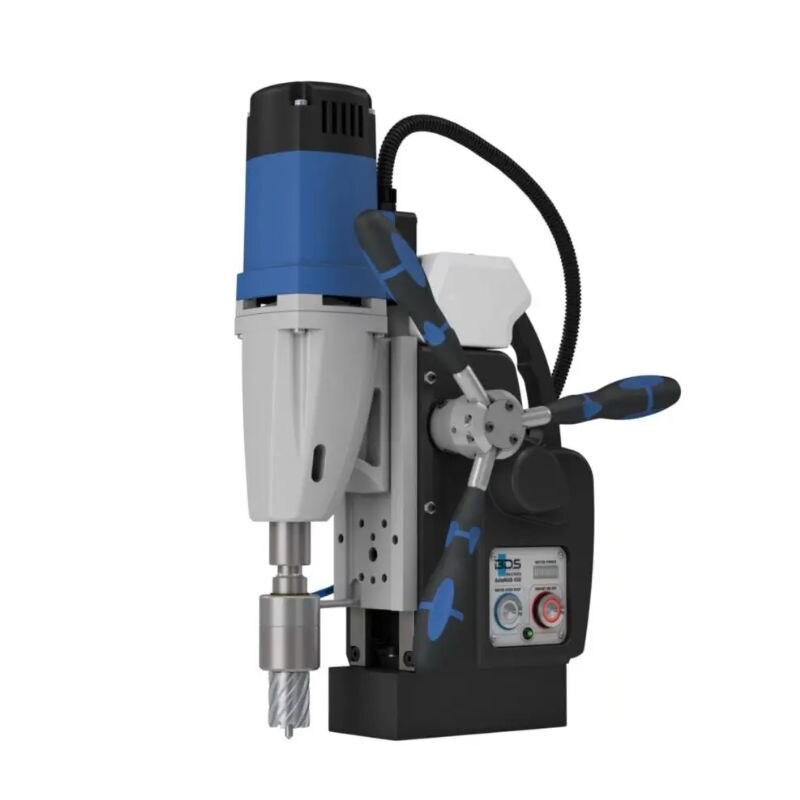

BDS AutoMAB 450 Automatic Magnetic Drilling Machine The **BDS AutoMAB 450** is a fully automatic magnetic drilling machine engineered to deliver superior productivity, precision, and reliability in demanding metalworking applications. Designed and manufactured in Germany, this advanced machine combines automatic feed, automatic reverse, and automatic shut-off functions to ensure consistent drilling performance while reducing operator fatigue and improving efficiency. Powered by a robust **1150 W motor** and equipped with a **two-speed gearbox**, the AutoMAB 450 offers exceptional drilling performance with a core drilling capacity of up to **45 mm diameter** and a maximum cutting depth of **55 mm**. Its **Morse Taper 2 (MT2) spindle** provides greater tooling flexibility and compatibility, making it suitable for a wide range of industrial drilling applications. The intelligent control system continuously monitors the drilling process and displays power consumption through an LED indicator, ensuring optimal drilling conditions at all times. The machine's automatic feed mechanism provides a uniform drilling process that helps reduce tool wear, improve hole quality, and significantly minimize the risk of cutter breakage. Operators can also switch between automatic and manual drilling modes as required. For enhanced safety and reliability, the AutoMAB 450 features overload protection, a magnet adhesion indicator with safety cut-out, permanent internal lubrication, and a robust gearbox design. If magnetic adhesion is lost during operation, the drilling and feed motors automatically stop, protecting both the operator and the machine. ### Key Features * Fully automatic feed, reverse, and shut-off functions * Core drilling capacity up to **Ø 45 mm** * Maximum cutting depth **55 mm** * Powerful **1150 W motor** * Two-speed gearbox for optimized drilling performance * **Morse Taper 2 (MT2) spindle** * Intelligent drilling process monitoring system * LED power consumption indicator * Automatic and manual drilling modes * Magnet adhesion indicator with safety shutdown * Overload protection system * Permanent internal lubrication * Reduced tool wear and improved drilling consistency * Compact and portable design * Ideal for fabrication shops, steel construction, and industrial maintenance * **Made in Germany** * **Available in India through Bhavin Tech** The **BDS AutoMAB 450** is the perfect solution for businesses seeking a high-performance automatic magnetic drilling machine that delivers faster drilling cycles, consistent results, and increased productivity with minimal operator intervention.
