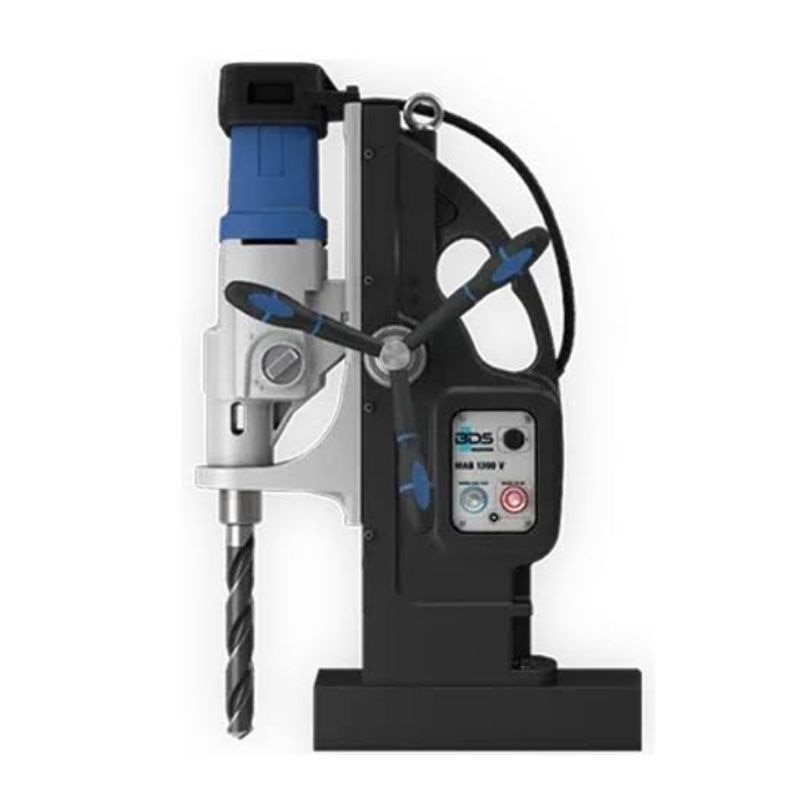

BDS MAB 1300 V Automatic Magnetic Core Drilling Machine
The **BDS MAB 1300 V Automatic Magnetic Core Drilling Machine** is a high-performance, heavy-duty magnetic drilling solution designed for demanding industrial fabrication and steelworking applications. Manufactured in Germany, this powerful machine combines a **2,300 W motor**, automatic variable feed, four-speed oil-bath gearbox, and advanced electronic controls to deliver efficient and precise drilling performance.
With a maximum **core drilling capacity of 130 mm** and cutting depth of up to **110 mm**, the MAB 1300 V is engineered for large-diameter drilling in heavy steel structures. It also supports **twist drilling up to 45 mm, reaming up to 50 mm, countersinking up to 80 mm, and thread cutting up to M42**, making it a versatile machine for multiple metalworking operations.
Advanced Automatic Feed System
The MAB 1300 V features a **variable automatic feed system with automatic reverse feed**, allowing controlled and consistent drilling operations. The feed speed can be adjusted steplessly, while manual feed remains possible whenever required. Automatic stopping at the upper or lower position further supports convenient operation in repetitive drilling applications.
Powerful & Versatile Performance
Its **four-speed gearbox** provides speed ranges from **30 to 550 rpm**, enabling operators to select the appropriate speed for different drilling and machining requirements. The **MT4 spindle taper**, variable speed and torque control, reversible motor, and full-wave control electronics provide flexibility across demanding applications.
### Built for Heavy-Duty Industrial Applications
The MAB 1300 V is suitable for applications such as **structural steel fabrication, heavy engineering, shipbuilding, steel construction, bridge construction, maintenance, and industrial manufacturing** where high drilling capacity and reliable performance are essential.
Key Features
* **2,300 W high-performance motor**
* **130 mm maximum core drilling diameter**
* **110 mm maximum cutting depth**
* **M42 maximum thread cutting capacity**
* **45 mm maximum twist drilling**
* **50 mm maximum reaming capacity**
* **80 mm maximum countersinking capacity**
* **Automatic variable feed system**
* **Automatic reverse feed function**
* **Four-speed oil-bath gearbox**
* **Variable speed and torque control**
* **Reversible motor**
* **MT4 Morse taper spindle**
* **Triple-coil magnet**
* **Full-wave control electronics**
* **Overheat protection**
* **Safety friction clutch**
* **Permanent internal lubrication**
* **Carbon brush wear indicator**
* **Magnet adhesion indicator**
* **Made in Germany**
### Applications
The **BDS MAB 1300 V Automatic Magnetic Drilling Machine** is ideal for:
* Structural steel fabrication
* Heavy engineering
* Shipbuilding and ship repair
* Bridge construction
